真空吸料机

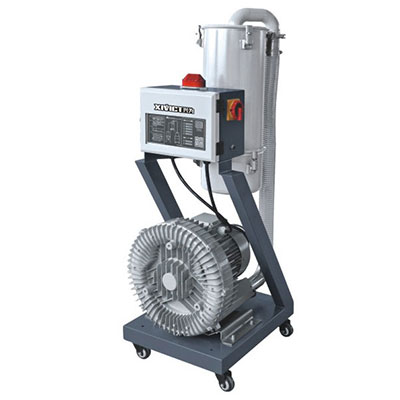

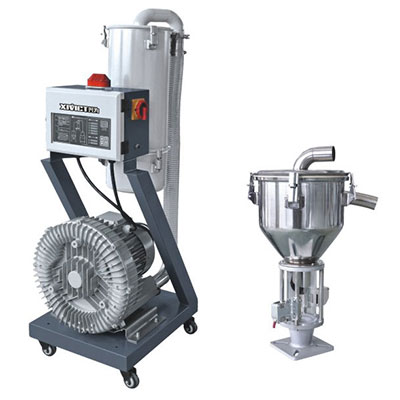

一对二/四分离式真空吸料机

一对二/四供料翰送可大幅节省成本;下吸风式设计滤清器下搭配旋风挡板奥分离式集桶有效地减轻滤清器的负荷;主机标淮配备警报灯爲报警装置另提供蜂鸣器供选配;...
  • 详细介绍
特点:

一对二/四供料翰送,可大幅节省成本。

下吸风式设计,滤清器下搭配旋风挡板奥分离式集桶,有效地减轻滤清器的负荷。

主机标淮配备警报灯爲报警装置,另提供蜂鸣器供选配。

主机与料斗分离安装装,操作简单,美观耐用。

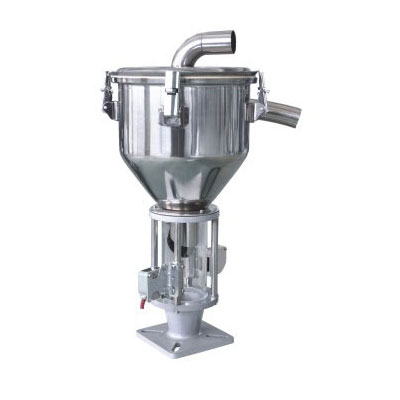

可搭配YMH(真空料斗)或YVH(电眼料斗)使用,满足车间现场多种组合使用。

采用不锈钢料斗,耐磨不污染原料。

分离式集尘桶,方便清除粉尘。

料斗配备膜片阀,使落料更爲顺畅。

采用欧规安全插头,使用时安全可靠。

料斗过滤网采用目数30目,线径0.mm的不锈钢丝制作,当翰送原料中回收料占30%及以上时,可选配目数14日,径爲0.5mm的不锈铜丝制作的过滤网,增加使用寿命。


A pair of two/four feeder, can greatly save the cost.

Under suction type design, filter, collocation cyclone baffle and separation type dust collecting barrel, effectively reduce the load of filter.

Host standard equipped with alarm lights for the alarm device, the other to provide a buzzer for matching.

Separation and installation of the main engine and the hopper, the operation is simple, beautiful and durable.

Can XMH collocation(vacuum hopper)or XVH (electric eye hopper), to meet the use of various combinations of workshop.
Adopt stainless steel hopper, wear resistant non polluting material.

Separation type dust collecting bucket, which is convenient for removing dust.

Hopper equipped with diaphragm valve, so that the material is more smooth.

Using the European safety plug, the use of safe and reliable.

Using hopper filter mesh for 30 mesh, wire diameter is 0.IMM stainless steel wire production, when conveying the feedstock recycling material accounted for 30% and above, the optional mesh for 14 orders, wire diameter is 0.5mm stainless wire making filtering net, increase the service life.

规格表:

一对二/四分离式真空吸料机

一对二/四分离式真空吸料机


备注:

“122”表示装用一对二的送料功能,“124”表示装用一对二的送料功能。

“YMH”表示真空料斗,“YVH”表示电眼料斗。

可选配ACF-1旋集摩器(用于YAL-1HP-UG或YAL-2HP-UG主机)。

翰送能力测试件:比重的0.65,直径3-5mm塑胶颗粒,以垂直高度4M,水平距离5M爲测试标淮所得。

机器电压规格:3中,380V,50Hz。

122"means that with a pair of two of the feeding function, 124" means that with a pair of two feeding function.

"YMH"means"YVH"said vacuum hopper, hopper electric eye.

optional ACF-1 cyclone dust collector(applicable to YAL-1HP-UG or YAL-2HP-UG host).

transport capacity test conditions: the proportion of about 0. 65, the diameter of 3-5mm plastic particles, with a vertical height of 4M, the level of 5M for the test standard.

the machine voltage specifications:3 phi,380V, 50HZ.

原理:

“一对二/四”分离式自动吸料机系列,适用于塑料颗粒的输送,主要利用马达运转产生真空,使料桶内产生压力差来输送塑料。


A pair of two four separation type automatic material feeding machine series, suitable for the transport of plastic particles. the main use of motor operation to produce a vacuum, so that the material can produce a pressure difference to transport the plastic.
